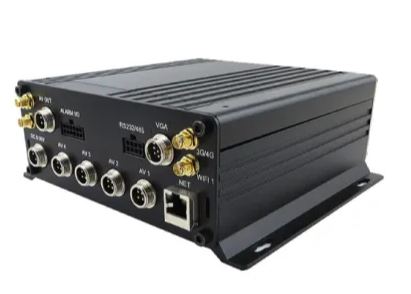

RC-DM314

Home Product Center RC-DM314

RC-DM314

Main Feature

- H.264, 4CH 720P/HD1/D1/CIF input
- 2CH video output
- 8-36V with low power consumption
- Unique UPS Technology
- HDD+SD Card Storage
- Support 2 USB interfaces
- 6CH alarm input, 2CH output
- Support GPS/3G/4G/G-Sensor
- Support WIFI module
- Support IOS/Android Phone monitor
- Easily installation, shockproof

General details

OS	Linux
Language	Chinese/English/Others (can be customized)
Video Compression	H.264
OSD	Overlays information such as date time and vehicle ID
GUI	Connect to external LED screen. Setup system parameters with the remote control
Video Input	4CH 720P AHD input, aviation connector
Video Output	1CH CVBS+ VGA output for optional, 1.0Vp-p, 75Ω
Preview	Support 1 channel and 4 channels preview.,Support Manual/Alarm Trigger full screen preview
Resolution	Support 720P/D1/CIF, MAX:4CH 720P
Video Quality	0-7 levels, 0 is the highest level, 7 is the lowest level
Video Standard	PAL: 100f/s , CCIR625 line,50field; NTSC: 120f/s, CCIR525 line,60field; CIF: 256Kbps ~ 1.5Mbps, multi-image quality optional; HD1: 600Kbps ~ 2.5Mbps, multi-image quality optional; D1: 800Kbps ~ 3Mbps, multi-image quality optional; 720P : 1Mbps~4Mbps, multi-image quality optional;
Record Mode	The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported
Audio Input	4CH ,Aviation Plug
Audio Output	1CH,rear port connects to BNC connector
Audio Compression	G.726 compression, 8KB/s speed
Alarm Input	6CH IO Alarm Input, Support alarm linkage function
Alarm Output	2CH power on/off Output, Support the linkage acousto-optic alarm, cut off fuel oil/power,etc
Communication Interface	1CH RS232, support extension device, such as POS machine, Oil Fuel sensor, LED advertising screen , etc 1CH 485 interface, can connect PTZ,etc 1CH RJ45 Port
Wireless transfer	Support Built-in 3G network, WCDMA,CDMA2000,TD-SCDMA compatible with GPRS,EDGE; Support Built-in 4G network, TTD-LTE, FDD-LTE.
Position	Support Built GPS/BD Module,can make playback analysis of vehicle routing
G-Sensor	Support G-Sensor
Storage	2.5" HDD+ SD Card,each max 2TB HDD + 128GB SD Card mirror recording to protect data from loss
Video Search	Search video by Record Time/Record Type etc
Playback	Max support 4CH Replay /Stop/Fast Forward/Fast Reverse at same time Support x 2,x4,x8,x16. fast forward or fast backward play
Power Management	Adaptive wide power input, support Wide Voltage, Over-load, Over-voltage, Short Circuit, Reverse Protection..Support Time Setting/Delay power off
Voltage Input	DC:+8V ~ +36V
Voltage Output	+12V @2.5A +5V @2.5A
Power Consumption	Normal Working <14W
Working Temperature	-20ºC to +70ºC
Humidity	20% to 80%
Size	193mm220mm53mm
Net Weight	1.2kg
