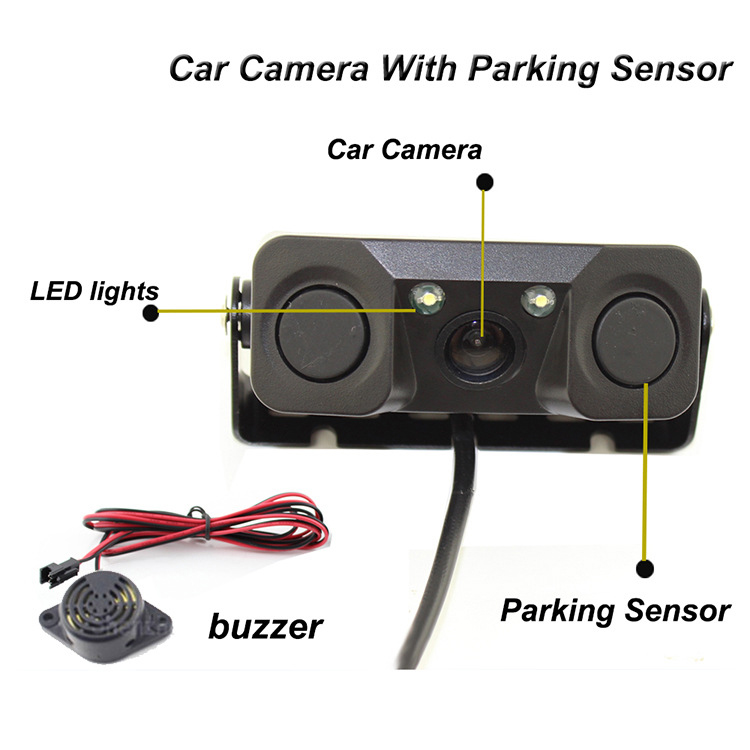

Car Three-in-one camera radar R0304

Main Feature

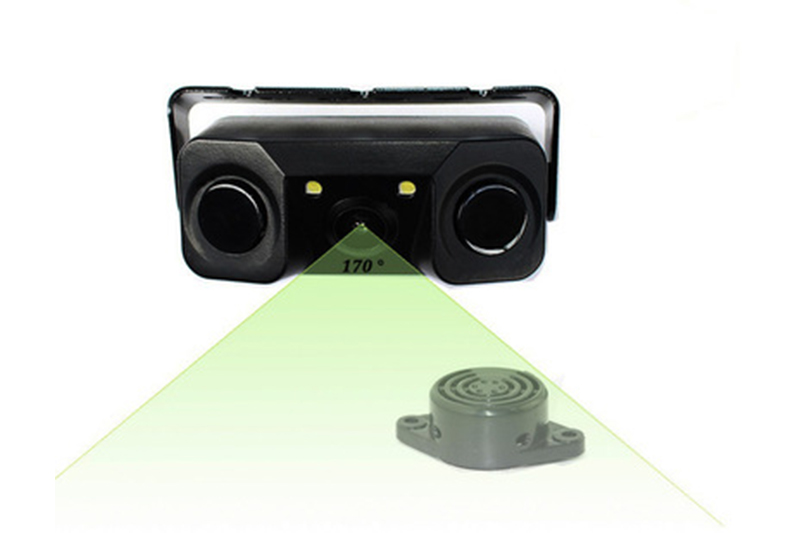

-Lens Angle: 170
-Mini Lumination: 1.0 Lux
-Waterproof : IP67
-Detect distance : 0--2.0 M
-Alarm by Four-step bibi sound
Volume:  65DB
-Display the distance and image
of obstacles on the screen

General details

voltage	9DCV-15DCV
Rated voltage	12DCV
Power cost	Max 1W
Image sensor	1/3 CMOS
Total Pixels	720*504pixels
Resolution	600 TVL (Enhanced)
Lens Angle	120 degree
Mini lumination	0Lux
Video output	CVBS 1.0 Vpp / 75ohm
Respond distance	0.3m-2.0m
Alarm distance	0m-2.0m
Sensor diameter	14mm
Sensor angle	X,Y,60ºC
work temperature	-30ºC---+80ºC
alarm volume	65dB
Alarm frequency	1.6-2.0m:0.5 HZ(slowness);;1.1-1.5m :1 HZ(slowness);
	0.6-1.0m:3 HZ(commonly); 0-0.4m :BI----- ;
