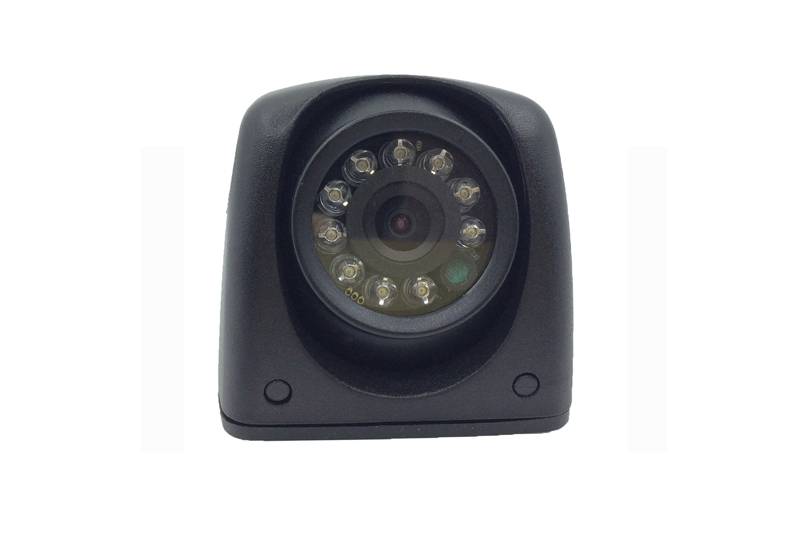

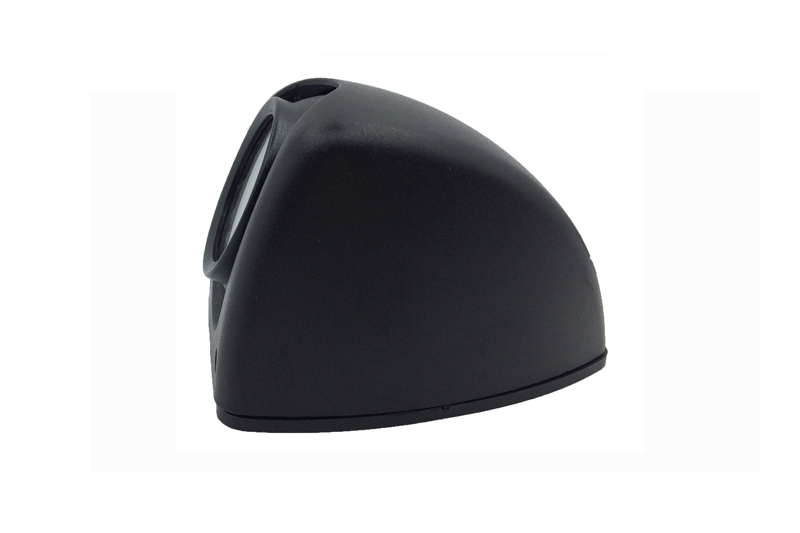

RC-C0314

Main Feature

-Resolution: 500TVL/AHD 720P
-Dustproof and waterproof
-With infrared function, the
infrared distance : 5-8m
-Power input 12V DC
-Night vision can automatically
switch to White and Black model
-Delicate appearance and
convenient installation.

General details

Sensor	1/3" CMOS (500TVL)
Video Resolution	PAL/NTSC :728(H)×488(V)
Minimum ilumination	0.1 Lux (day), 0 Lux (with IR)
Horizontal Sync. Frequency	15.625KHz/15.734KHz
Vertical Sync. Frequency	50Hz/60Hz
Lens	2.8MM, 3.6MM
Day and Night	support IR-CUT
Sync system	Inter sync
Gamma Consumption	0.45
Electronic shutter	Auto
AGC	Auto
White balance mode	Auto
Video output	1.0Vp-p, 75Ohm 4-pin aviation cable
IR	IR:10PCS LEDS , 5-8m IR range
S/N	>48dB
Viewing angle	120° / 92°
Power	12V dc +/- 10%
Operating Temperature	-20 ºC ~ 70 ºC, RH 95% MAX
Storage Temperature	-40ºC~80 ºC, RH 95% MAX
Waterproof	IP68
