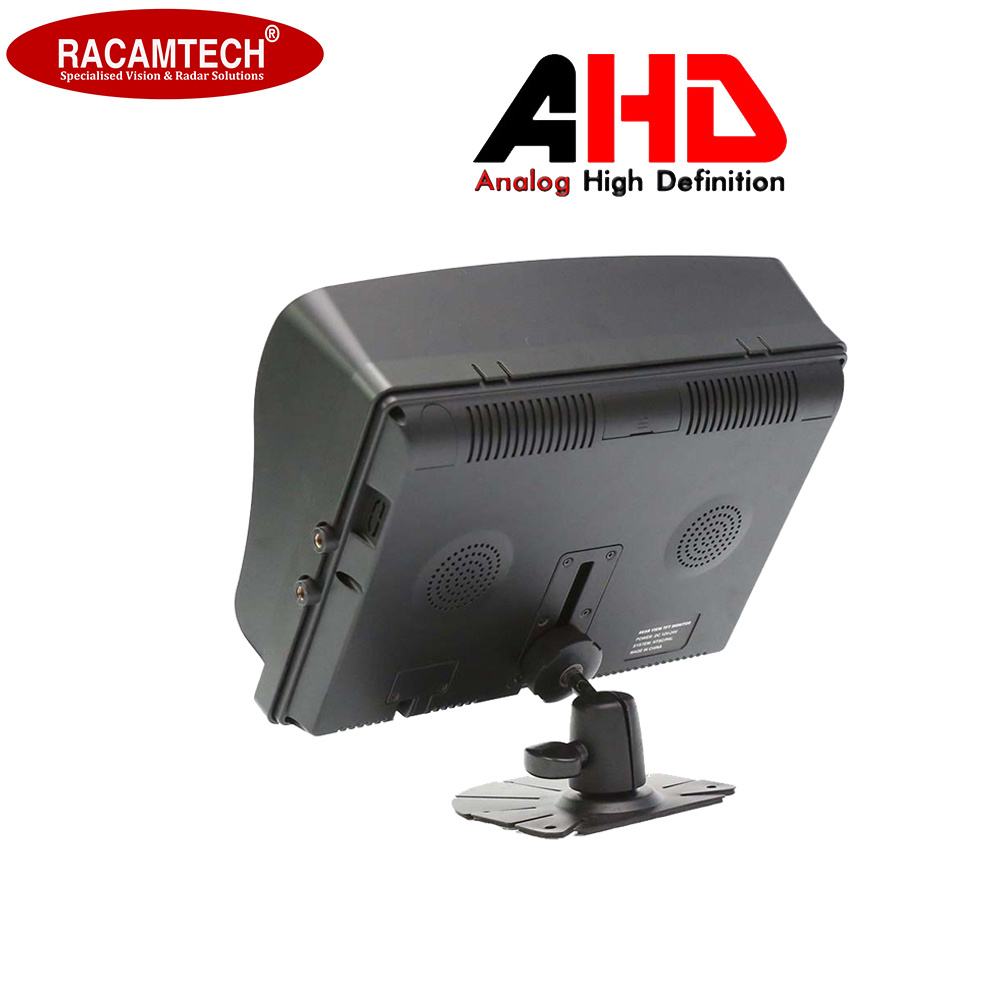

M926AQ

Main Feature

-Four Camera Input,Support single/split/quad View
-4 Pin conector 4 AHD Camera inputs
-Operates DC9-32. Support 12V or 24V automobile battery.
-Automatic trigger(trigger delay 0s-5s adjustable)
-Prevent glare at night on the windscreen

General details

Model	M926AQ
LCD size	9"
Resolution	1024*600
Contrast	500:1
Brightness	450 cd/m²
Viewing Angle	U: 50° , D:70° , R/L:70
Channel	4 channels
Video	4 Pin conector 4 video inputs
Power Supply	Automobile storage battery (9-32v)
System Format	PAL / NTSC / AUTO
Power Consumption	About 10W
Operating Temperature	-20~+75ºC,
Storage Temperature	-30~+80ºC
Accessories
1- Power cable	1- Center mount bracket
1- Manual	1- IR remote control
1- U-support bracket	4- Angle adjustment screws
