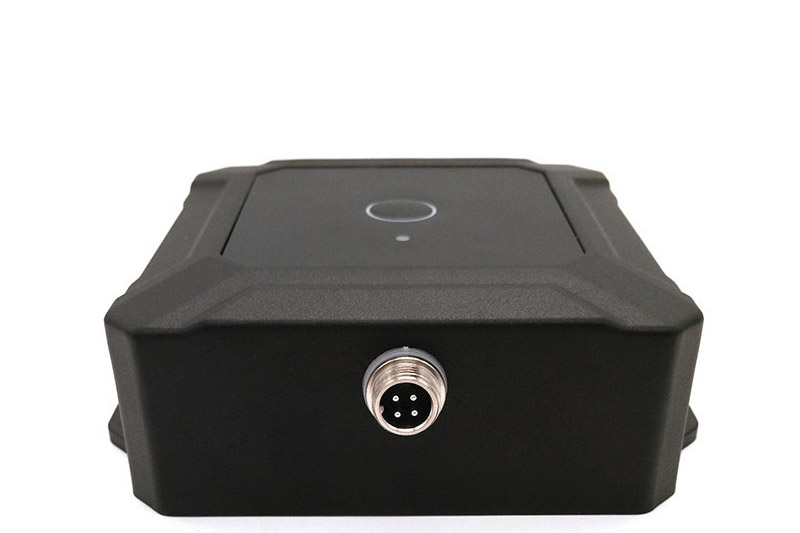

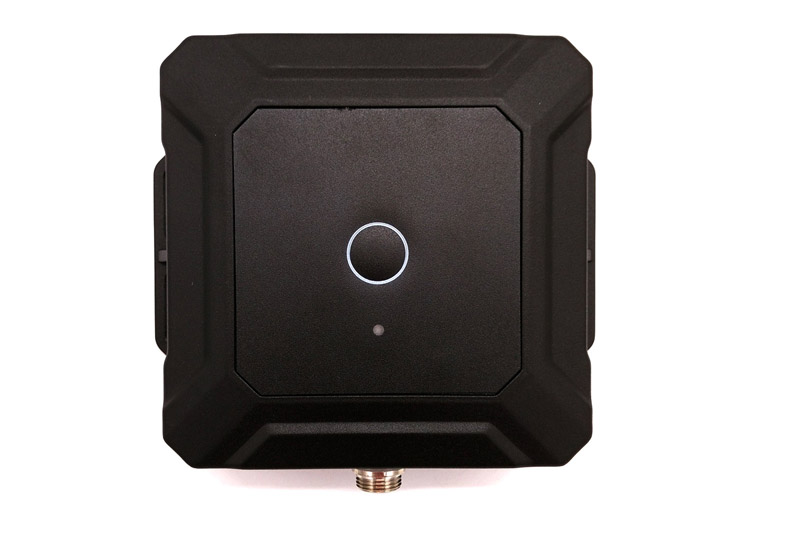

RC-A0302D

Home Product Center RC-A0302D

RC-A0302D

Main Feature

-Nominal voltage: 12V
-Rated Capacity: 5000mAh
-Overcharging protection voltage:
12.5V ± 0.25V
-Voltage discharging protection:
10.5V ± 0.25V
-Input, output short circuit
protection

General details

Nominal voltage	12V
Rated Capacity	5000mAh/12V
Overcharging protection voltage	12.5V ± 0.25V
Voltage discharging protection	10.5V ± 0.25V
Charging Mode	Constant current
Maximum charging voltage	14.5-25V
Charge Current	1.3A
Waterproof	IP69K
Charging temperature	0~45ºC,60±25%RH
Discharging temperature	'-20~60ºC,60±25%RH
Storage temperature and humidity range	Short-term: more than a month -20~+55ºC,60±25%RH
	Interim: more than three months -20~+45ºC,60±25%RH
	Long-term: one year or less -5~+20ºC,60±25%RH
