R0311

Home Product Center R0311

R0311

Main Feature

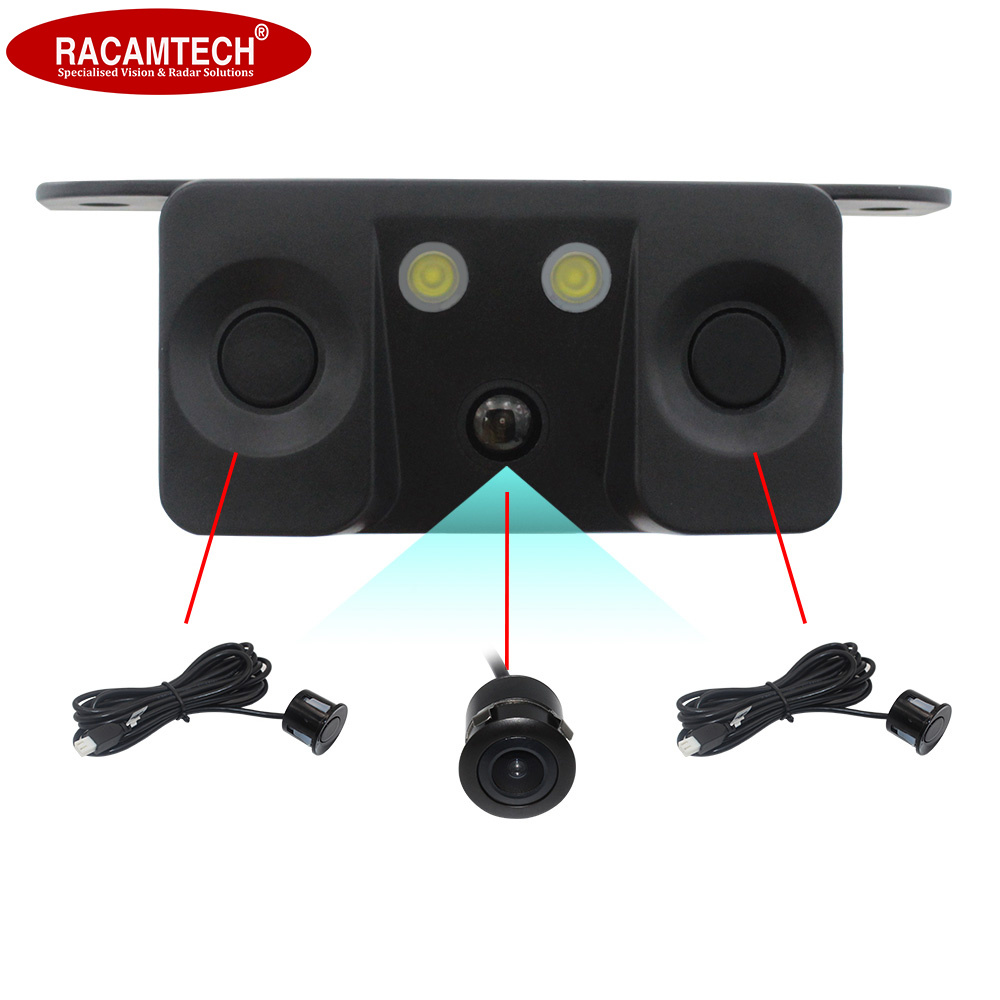

- The camera has four probes
- Display distance and obstacle direction on monitor
- 4 segments of BIBI sound prompts
- 2-CH video input;Can connect camera, DVD and other video input
- Reverse rear view function, automatic left and right image switching

General details

TFT-LCD reverse monitor		Rear view camera
Screen size	7-inch screen	Operating voltage	DC 24V
Display mode	16: 9	Resolution	800*680
Resolution	1024*688	Lens	2.5mm
System	PAL / NTSC	View angle	120 °
Operating voltage	DC 24V	Waterproof	IP67
Power	≤7W	Infrared light	2pcs
Operating temperature	-10 ºC~ + 65 ºC	Night vision distance	15 meters
Storage temperature	-10 ºC~ + 65 ºC	Minimum illumination	0Lux (LED ON)
Video input	2AV Input	Operating temperature	-20 ° C ~ + 70 ° C
Contrast	350:1	Shell Material	Aluminum
Optional	audio	Mount material	Metal
