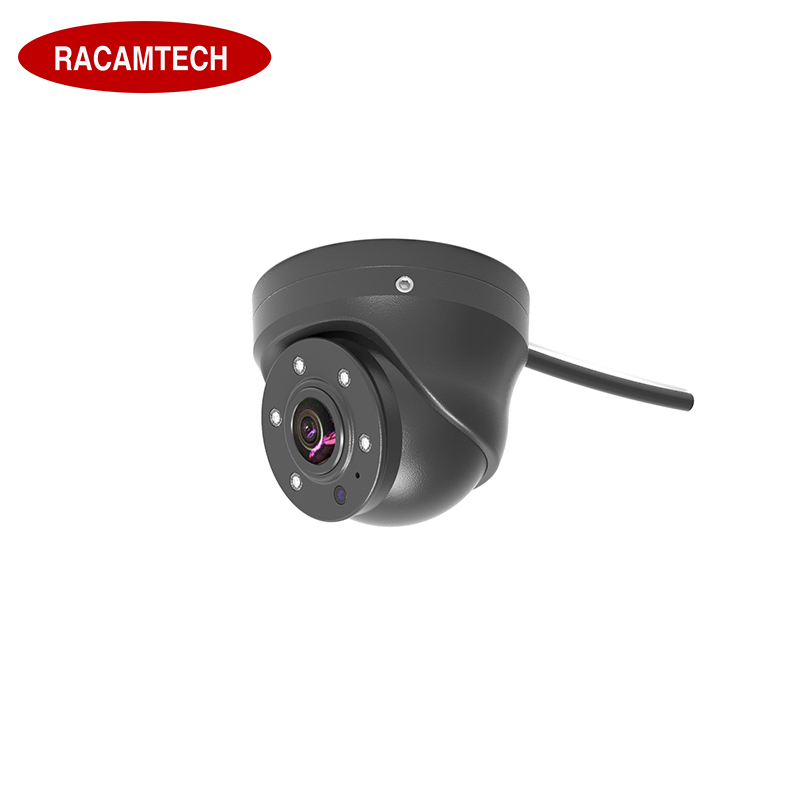

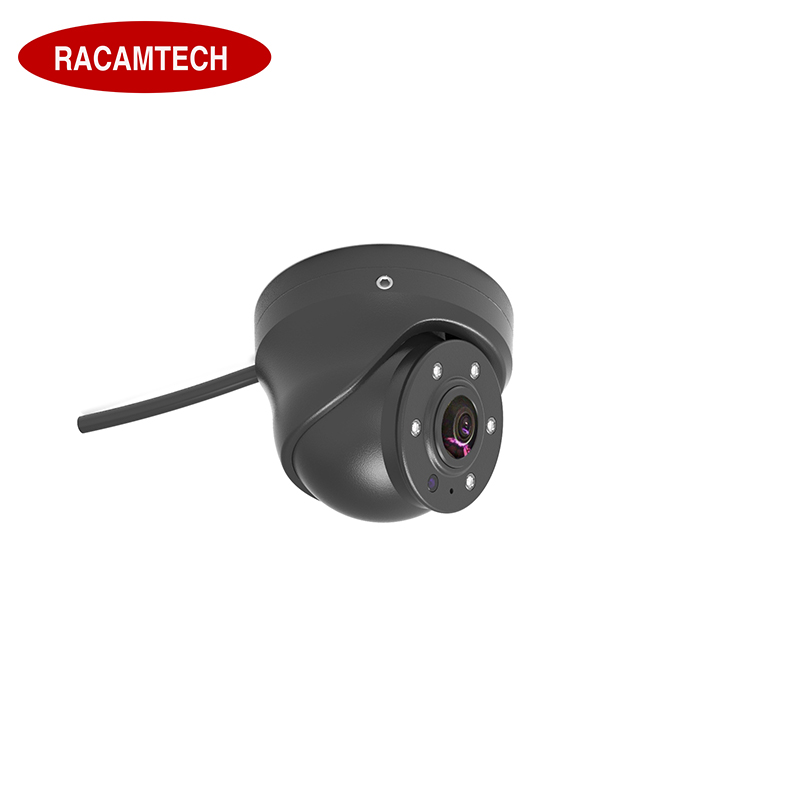

RC-C0316

Main Feature

-Resolution: 720P/960P/1080P
-IP69K
-With infrared function, the
infrared distance : 5-8m
-Power input 12VDC
-Super wide viewing angle
-Convenient installation

General details

Image Device		1/3 CMOS
TV System		NTSC/PAL
Effective Pixels		1280（H）ⅹ960（V） 1920（H）ⅹ1080（V）
Sensing Area		3.75μm/2.8μm
Sync. System		Internal
Resolution		130W/200W
Minimum Illumination		0.1 Lux (day), 0 Lux (with IR)
Microphone		Optional
IR LED Qty		5PCS
Video Output		1.0 Vp-p/75 Ohm
Scanning System		interlace
AGC		AUTO
Signal to noise ratio		Better than 48dB
White balance		AUTO
Gamma Consumption		0.45
Electronic Shutter		AUTO
Backlight Compensation		AUTO
Power Supply		DC12V
Lens		1.98mm
Lens Angle		150°
Connector		Aviation connector/S-Video for option
Operating Temperature		-20℃-70℃,RH 95% MAX
Storage Temperature		-30℃-80℃,RH 95% MAX
