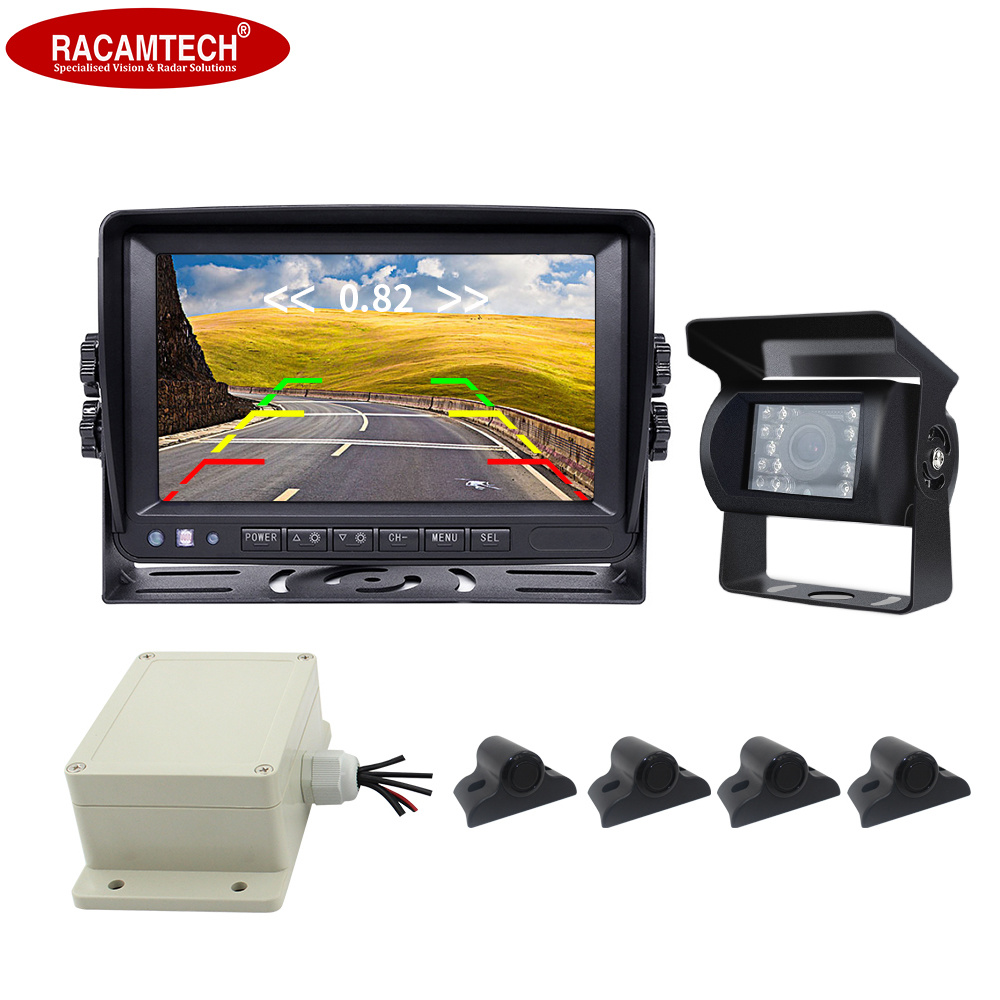

R0310

Main Feature

-Four-stage alarm sound Volume:65DB
-4 sensors (2.5M cable with waterproof interface)video cable(10M 4-pin video cable)10~30M is optional
-Automatic display the distance and image when reversing
-Alarm sound after detective the obstacles

General details

TFT-LCD reverse monitor		Rear view camera		Parking sensor
Screen size	7-inch screen	Operating voltage	DC 12 / 24V	Voltage	DC 9V-15V
Display mode	16: 9	Resolution	688*488	Rated voltage	DC 12V
Resolution	800R x 480	Lens	2.5mm	Power cost	Max 0.5W
System	PAL / NTSC	View angle	170 °	Respond distance	0.3m-3.0m
Operating voltage	DC 12V / 24V	Waterproof	IP67	Alarm distance	0m-3.0m
Power	≤7W	Infrared light	12pcs	Display mode	Monitor
Contrast	350:1	Shell Material	Aluminum	Alarm type	Buzzer (Bi Bi….)
Optional	audio	Mount material	Metal	Alarm volume	65dB
Operating temperature	-10 ºC~ + 65 ºC	Night vision distance	15 meters	Sensor diameter	Optional
Storage temperature	-10 ºC~ + 65 ºC	Minimum illumination	0Lux (LED ON)	Install mode	drill
Video input	2AV Input	Operating temperature	-20 ° C ~ + 70 ° C	Sensor angle	X,Y,60ºC
