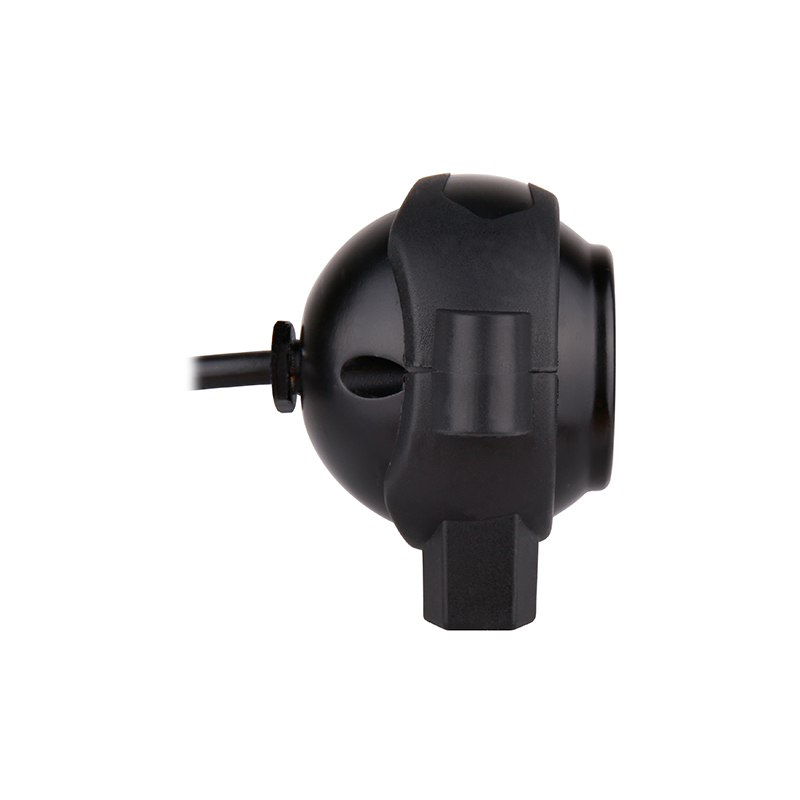

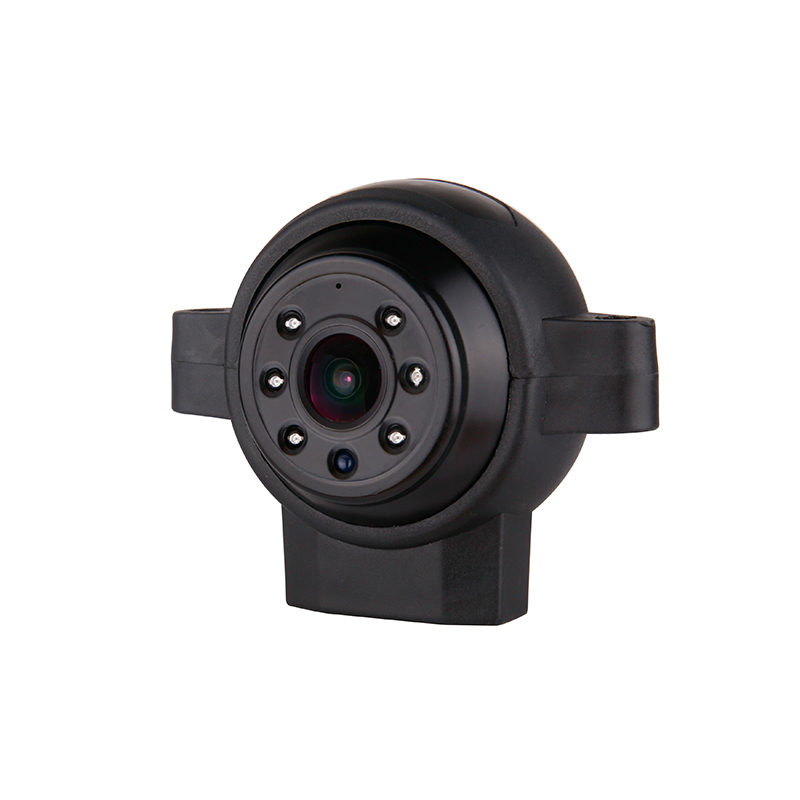

Super Wide Viewing Angle Camera RC-C0325

Home Product Center Super Wide Viewing Angle Camera RC-C0325

Super Wide Viewing Angle Camera RC-C0325

Main Feature

- Resolution: AHD960P/1080P
- Super wide viewing angle(150°)
- Waterproof grade IP69K
- With night vision function, the
infrared distance : 10m
- Power input 12V DC

General details

Image Sensor		1/2.9 SONY
TV System		NTSC/PAL
Effective Pixels		1920（H）ⅹ 1080（V）
Sensing Area		2.8μm（H）ⅹ 2.8μm（V）
Sync. System		Internal
Resolution		200W
Minimum Illumination		0.1 Lux (day), 0 Lux (with IR)
Microphone		Optional
IR LED Qty		6PCS
Video Output		1.0 Vp-p/75 Ohm
Scanning System		interlace
AGC		AUTO
Signal to noise ratio		Better than 48dB
White balance		AUTO
Gamma Consumption		0.45
Electronic Shutter		AUTO
Backlight Compensation		AUTO
Power Supply		DC12V
Lens		1.98mm
Lens Angle		150°
Current Drain		70±5mA
Operating Temperature		-20℃-70℃,RH 95% MAX
Storage Temperature		-30℃-80℃,RH 95% MAX
