RC-A0309

Home Product Center RC-A0309

RC-A0309

Main Feature

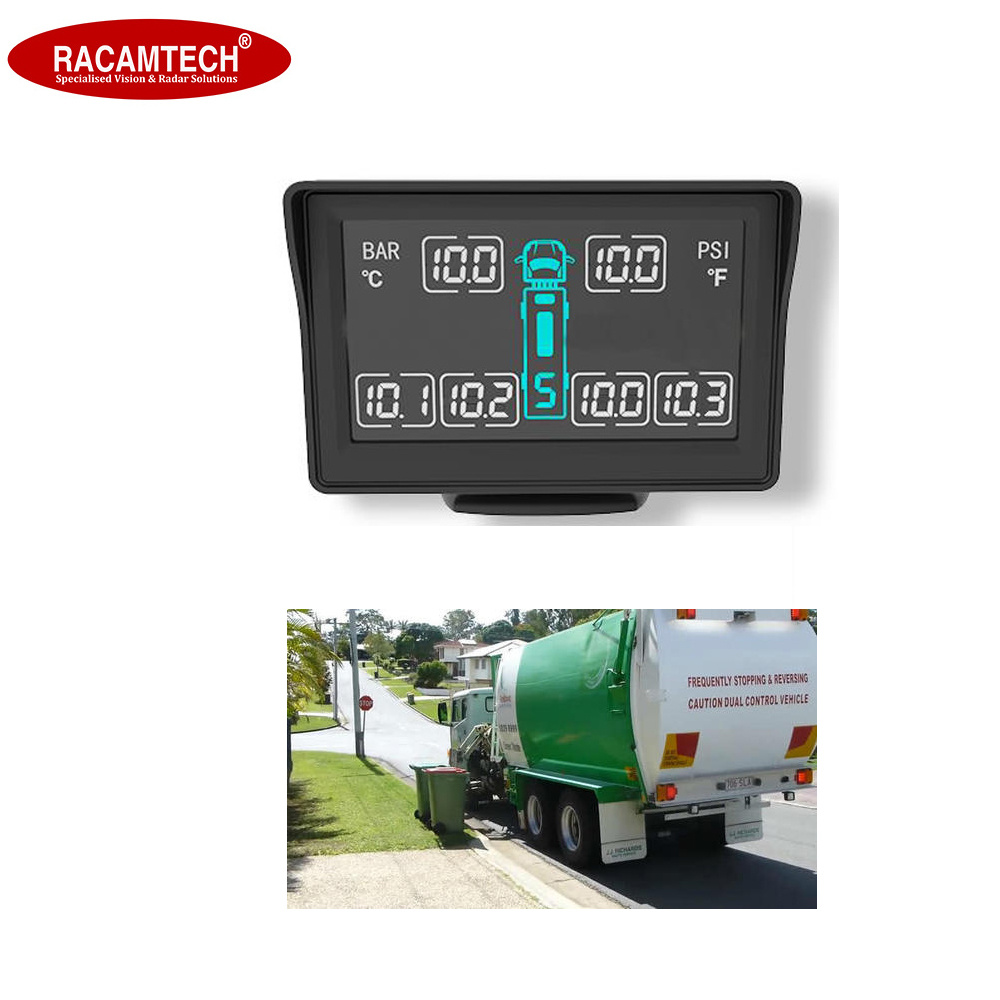

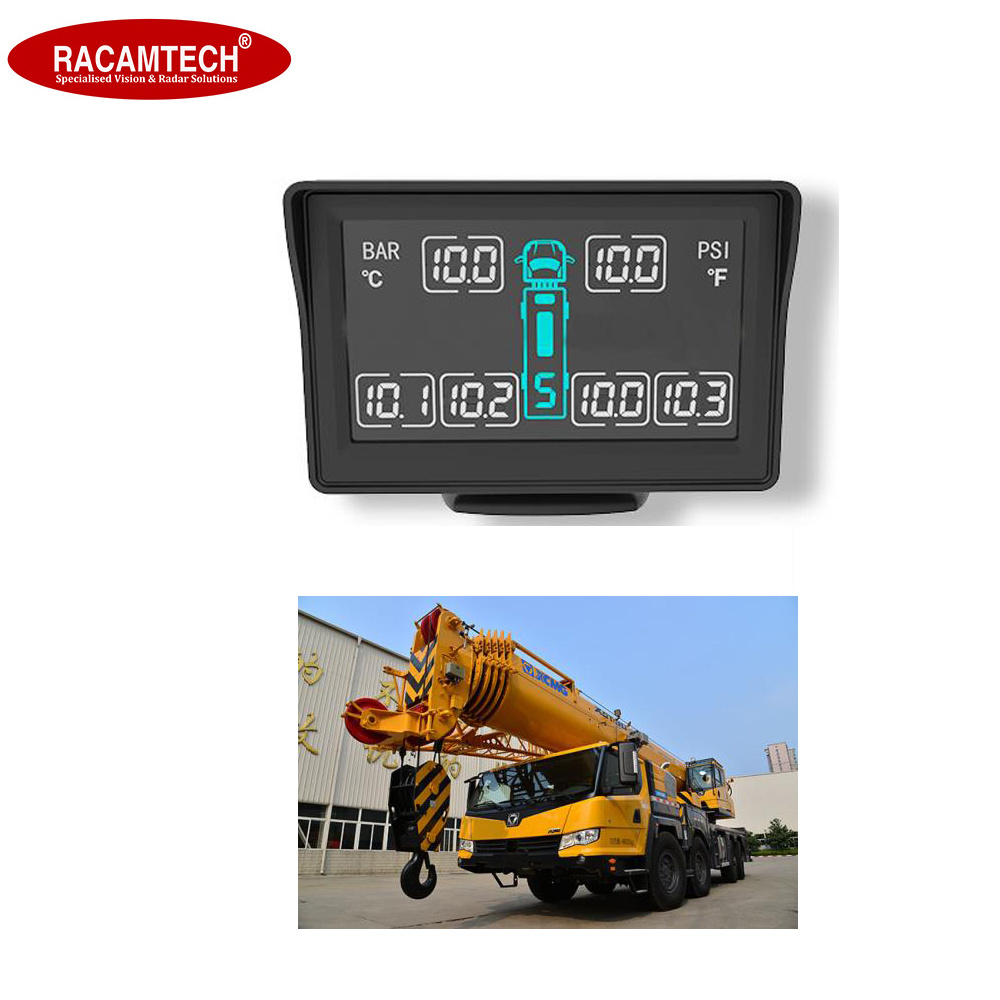

-4.3 "large screen display
-The display can adjust the Angle
- Simultaneously display the tire pressure of 6 wheels of the truck, supporting up to 22 tires
- Alarm function for high and low pressure, air leakage and high temperature
-Support pressure range: 0~15bar
-Working voltage: 12~32V DC
- Sensor operating voltage: DC3V

General details

Minitor			External sensor
Working temperature	-20ºC-80ºC	Working temperature	-20ºC-80ºC
Storage temperature	-30ºC-85ºC	Storage temperature	-40ºC-85ºC
Power	DC12-32V	Pressure range	1-15 bar (0-87 psi)
Operating frequency	433.92MHZ	Pressure accuracy	±1.5 psi (±0.1bar)
		Temperature accuracy	±3ºC
		Transmitted power	<10dBm
		Transmitting frequency	433.92MHZ
		Battery life	>=2 years
