-7" Touch screen Monitor
-Support single, split and Quad
-Sturdy case and mounting bracket
-Automatic trigger
-Operates DC9-32V
-Support single, split and Quad
-Sturdy case and mounting bracket
-Automatic trigger
-Operates DC9-32V

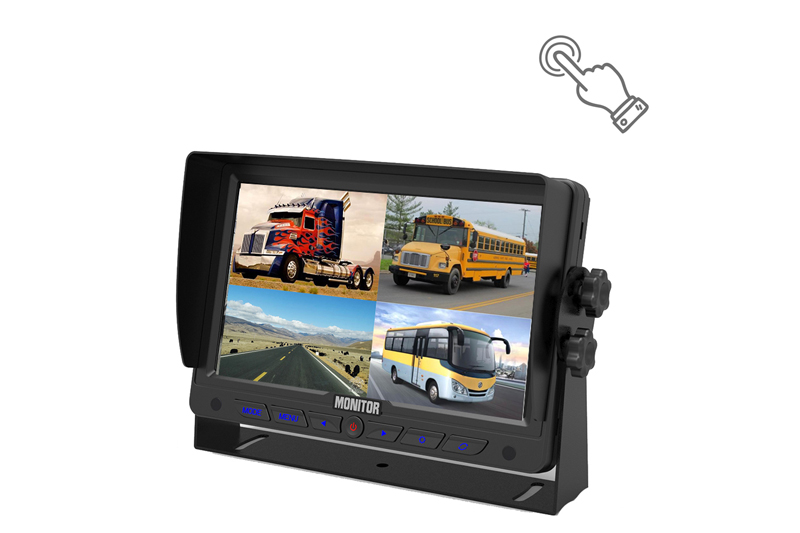

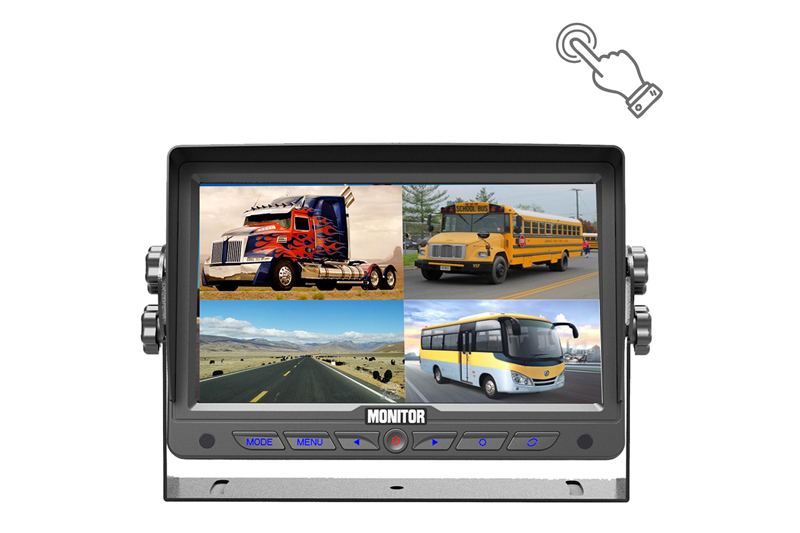

7" Touch Screen Quad Monitor RC-M726TQ
Main Feature
General details
| Model | M726TQ | |||
| LCD size | 7" | |||
| Panel | High digtal new panel | |||
| Resolution | 800 x 3 (RGB) x 480 | |||
| Contrast | 400:1 | |||
| Brightness | 300 cd/m² | |||
| Viewing Angle | U: 50° , D: 70° , R/L: 70° /70° | |||
| Aspect Ratio | 16:09 | |||
| vedio | 4 pin connector 4 video inputs | |||
| image | Singal/Split/Quad View | |||
| Optional | built-in speaker | |||
| Power Supply | DC 9~32 | |||
| System Format | PAL / NTSC | |||
| Function | High-low voltage protection & short circuit protection | |||
| Language | English, Chinese, Spanish, Portuguese, Russian, French, Italian,Nederlands | |||
| Operating Temperature | -20~+75ºC | |||
| Storage Temperature | -30~+80ºC | |||
