-Resolution:AHD960P/1080P
-Dustproof and waterproof
-With infrared function
-Power input 12V
-Night vision can automatically
switch to White and Black mode
-Delicate appearance and
convenient installation

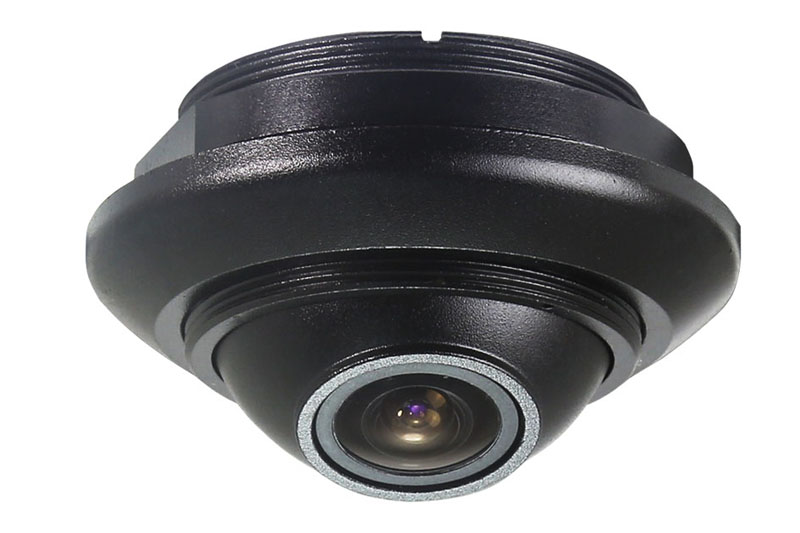

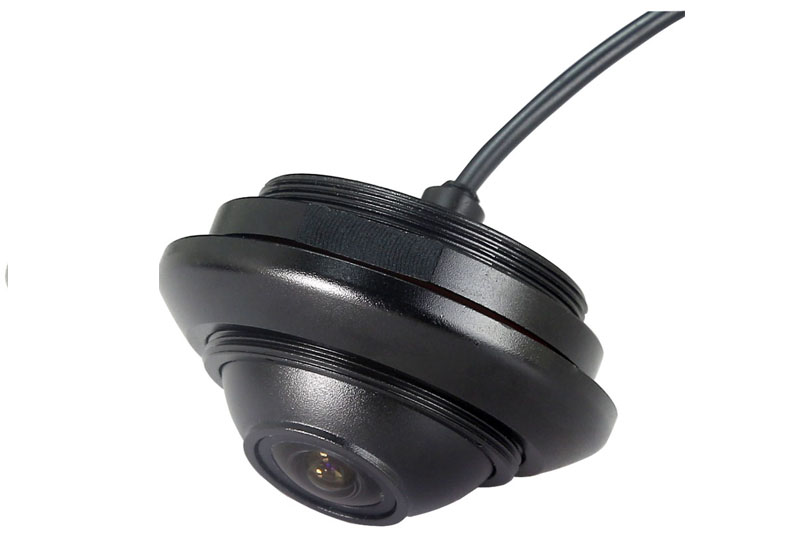

RC-C0336
Main Feature
-Resolution:AHD960P/1080P
-Dustproof and waterproof
-With infrared function
-Power input 12V
-Night vision can automatically
switch to White and Black mode
-Delicate appearance and
convenient installation
General details
| Sensor | 1/3" CMOS (1000TVL)960P | ||
| Video Resolution | PAL/NTSC : AHD-M (1200TVL) PAL:1280(H)×960(V)NTSC:1280(H)×960(V) (960P) | ||
| Minimum ilumination | Color: 0.001Lux@(F1.2,AGC ON),0Lux with IR | ||
| Black and White:0.001Lux@(F1.2,AGC ON),0Lux with IR | |||
| Shutter | 1/50 (1/60) sec to 1 / 10,000 sec | ||
| Lens | 2.8MM | ||
| Day and Night | support IR-CUT | ||
| Sync system | Inter sync | ||
| Electronic shutter | Auto | ||
| White balance mode | Auto | ||
| Video output | AHD standard output 4-pin aviation cable | ||
| IR | IR:12PCS LEDS , 5-15m IR range | ||
| S/N | >46dB | ||
| Power | 12V dc +/- 10% | ||
| Power consumption | <5W | ||
| Working Temperatura&Humidity | -20 ºC ~ 60 ºC, humidity less than 90% (no condensation) | ||
| Waterproof | IP68 | ||
