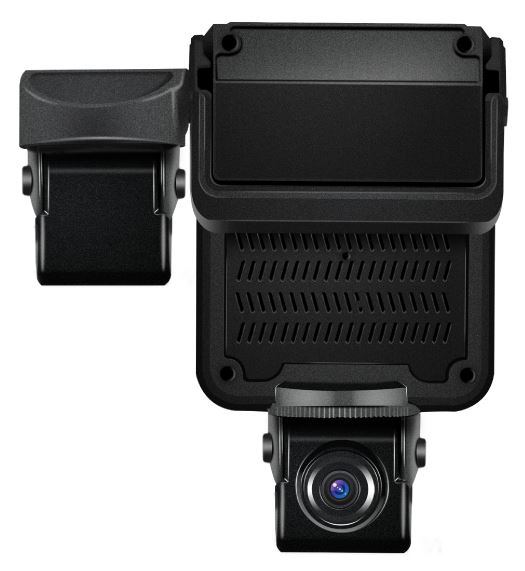

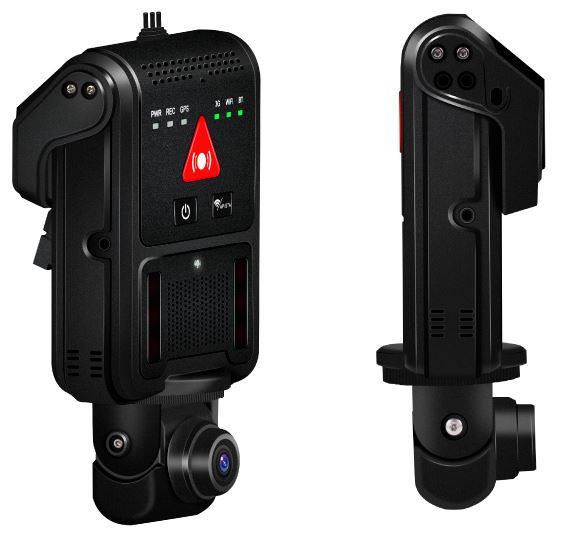

RC-MDM01

Home Product Center RC-MDM01

RC-MDM01

Main Feature

-Support 3G/4G network, built-in BD, GPS dual-mode, G-sensor;
-Support WIFI module (Support AP and STATION mode, which can be switched by one button);
-Built-in Bluetooth module(Bluetooth voice intercom and Bluetooth button alarm);
-Mini high-speed USB2.0 interface (backup data);

General details

OS	Linux
Language	Chinese/English/Others (can be customized)
Video Compression	H.264
OSD	Overlays information such as date time and vehicle ID
GUI	Connect to external LED screen. Setup system parameters with the remote control. Setup via Computer directly with WIFI Hotspot.
Video Input	Up to 4 channels
Video Output	1CH AV output
Resolution	Support 1080P/720P/D1/CIF, MAX:2CH 1080P
Video Quality	0-7 levels, 0 is the highest level, 7 is the lowest level
Video Standard	PAL: 100f/s , CCIR625 line,50field; NTSC: 120f/s, CCIR525 line,60field; CIF: 256Kbps ~ 1.5Mbps, multi-image quality optional; HD1: 600Kbps ~ 2.5Mbps, multi-image quality optional; D1: 800Kbps ~ 3Mbps, multi-image quality optional; 720P : 1Mbps~4Mbps, multi-image quality optional; 1080P: 800Kbps-6Mbps, multi-image quality optional;
Record Mode	Auto recording with ACC Power on. Timed recording, alarm recording and manual recording.
Audio Input	Up to 4 channels
Alarm Input	1CH level Alarm Input
Communication Interface	1CH RS232 &1 channel RS485
Wireless transfer	Support Built-in 3G network, WCDMA,CDMA2000,TD-SCDMA compatible with GPRS,EDGE; Support Built-in 4G network, TTD-LTE, FDD-LTE.
Position	Support Built GPS/BD Module, can make playback analysis of vehicle routing.
Storage	Max support 2X256GB SD Card
Video Search	Max support 2CH Replay /Stop/ Forward/Reverse
Playback	upport x 2, x4, x8, x16. forward or backward play
Safety Management	User/Admin 2 Levels Different Passwords , support screen lock
TTS Voice Broadcasting	Support TTS voice broadcasting
Power Management	Adaptive wide power input, with overload, under voltage, short circuit, reverse connection and other protection functions; Support the timer switch machine, delay shutdown function
Voltage Input	DC:+8V ~ +36V
Voltage Output	12V @1.2A 1 channel, with IR 12V @0.9A 1channel, with IR
Power-off Protection	UPS Technology, All video information can be saved automatically when the power is cut off, and make sure that all the files cannot be damaged
Power Consumption	Normal Working <10W, Standby state <0.5W
Working Temperature	-20ºC to +70ºC
Humidity	20% to 80%
Heater Device	Build-In Hard disk Heater(Temperature Sensor)
Size	125mm130mm150mm
