| Video Interface | BMW Mini connector | ||||
| Input / Output Impedance | 75Ω | ||||
| Amplitude Typical | 1Vpp, 1.2Vpp Maximum | ||||
| Bandwidth | 27M | ||||
| Sampling Frequency | 74.25MHZ | ||||
| Resolution | 1280X720@30fps | ||||
| Signal standard | AHD1.0(Nextchip) | ||||
| SNR | 70dB | ||||
| High beam | Optional | ||||
| Left/Right Turning Blinker | Yes | ||||
| Reversing Lamp | Yes | ||||
| BM250E | Bosch | ||||
| Algorithm | H.264 Baseline@L3.1 | ||||
| Resolution | 1080p@15fps | ||||
| Bitrates | 5Mbps,3Gbyte/Hour | ||||
| Recording Media | USB Disk(High Priority)/TF | ||||
| TF CARD | 32G SDIO3.0/SDIO2.0 | ||||
| USB Disk | Max 128G USB2.0 | ||||
| 4-CH DVR + SVM mode | 350mA | ||||
| 4-CH DVR mode | 600mA | ||||
| Sleep Mode | <10mA | ||||
| Dimension | 123*81*25mm(Host Metal box) | ||||
| Waterproof rating | IP68 | ||||
| Normal Working | -30ºC~+85ºC | ||||
| Storage | -40ºC~+105ºC | ||||
| Relative Humidity | 0~95% | ||||
| Working Voltage | 9.5V~36V | ||||

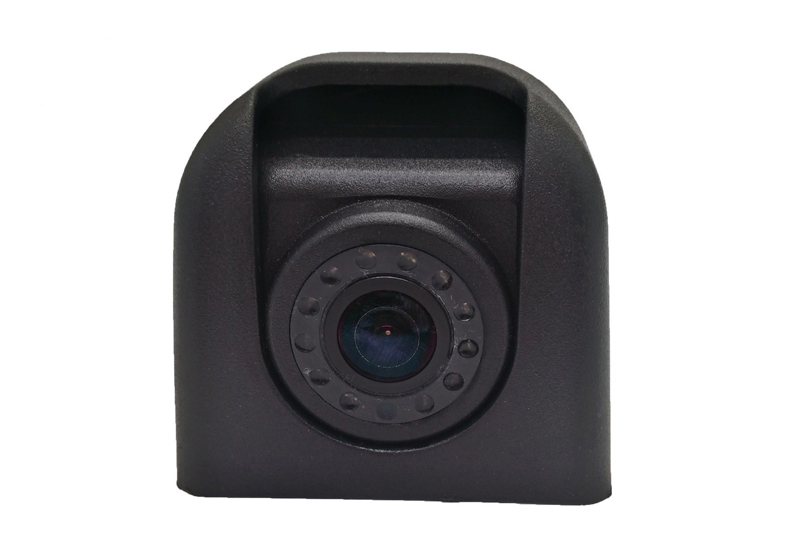

| Specification | 1080P |
| Operating System | Embedded LINUX,Haisi Series Hi3516C DSP |
| Image Sensor | 1/2.7" SONY, 2megapixel CMOS sensor |
| Effective Pixel | 1920(H)*1080(V) |
| Electronic Shutter | 1/50(1/60)s~1/100,000 s |
| Signal System | PAL/NTSC |
| Video Compression | H.264 HighProfile, Support JPEG photograph,l Support dual stream 0.1M~6Mpbs ADJ;Support Frame Rate 1~30fps ADJ; |
| Video Bite Rate | 32 Kbps~8Mbps |
| Dual Stream | Main Stream:1920*1080;Second Stream:704*576; |
| Frame Rate | 50Hz:25fps (1920*1080) 60Hz:30fps (1920*1080) |
| Min. Illumination | Color:0.6Lux @(F1.2,AGC ON) B/W:0.08Lux @(F1.2,AGC ON) 0 Lux with IR |
| Image settings | Saturation, Brightness, Contrast adjustable through Client software or web server |
| Ethernet | RJ-45 (10/100Base-T) |
| Network Protocols | TCP/IP, HTTP, SMTP,DNS, DDNS, DHCP, FTP, NTP, PPPOE, UPNP etc. |
| Lens | 3.6mm |
| Day/Night | IR-cut filter with auto switch |
| Intelligent Alarm | Motion detect,Video loss,Network disconnection,IP address conflict,Storage full,Storage error |
| ONVIF | YES |
| Mobile monitor | l Support mobile monitor(iPhone, Android) |
| Client-side | l Provide web, CMS, center manage software (MYEYE), and SDK for development |
| Power Supply | DC12V,(Support POE Power Supply Optional) |
| Protection Range | IP68 |
| Operating Environment | -10°C ~+60°C, 10%-90% |
| IR distance | 10-25m |
